Immersing & Steam Blancher

screw blancher blanching machine

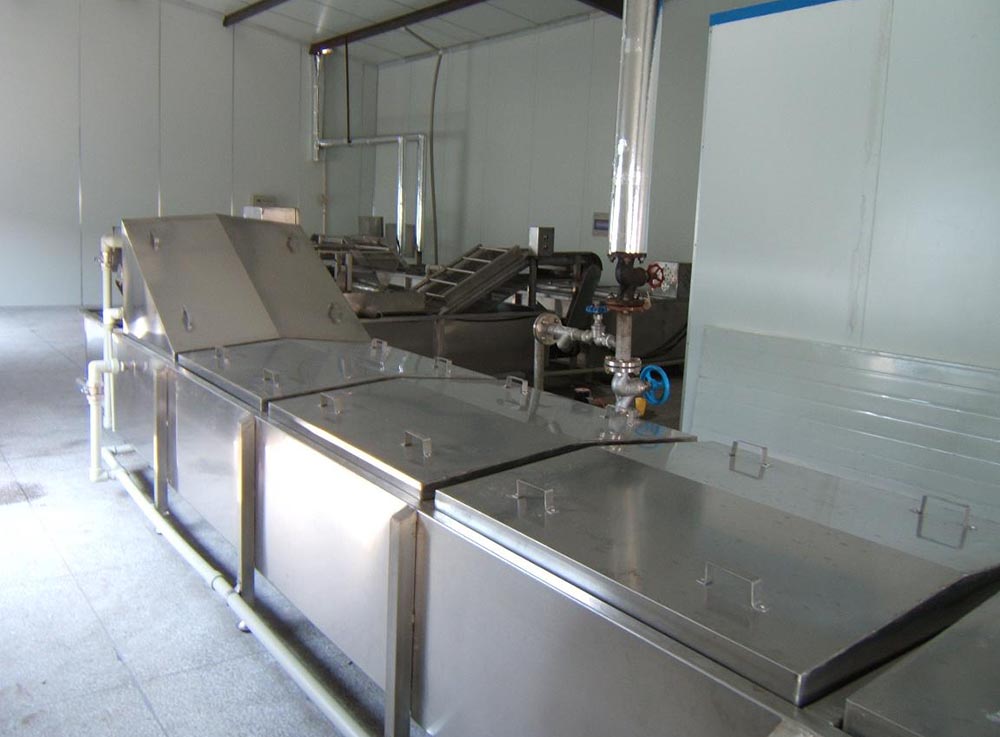

Steam blancher is belt type. The hot water beneath conveying belt produce steam, This type can prevent nutrition to run off cause the raw materials don't contact with hot water. This kind of blanching machine is also suitable for the raw materials which is easy to damage. And it can be used as cooking machine in shrimp processing plant too.

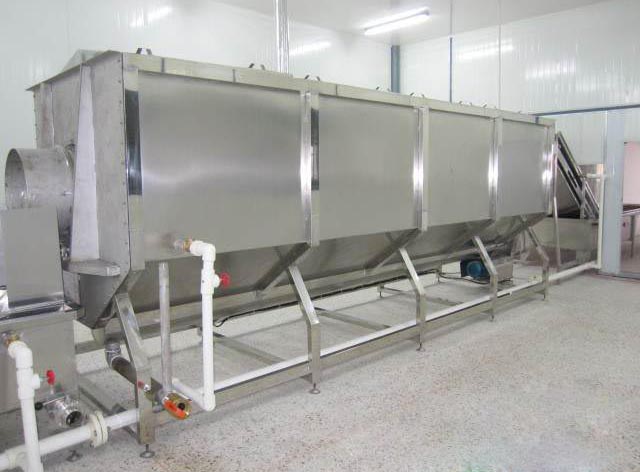

Immersing blancher is screw type. It is conventional blanching machine for vegetables processing. The range includes diced root vegetables, leaty vegetables and beans. The roller speed regulating system can be mounted according to customers' indication. Generally blanching duration is 2-5 minutes. Processing capacity from 500-4000kg/h.

Scope of Application

Beans, pea, maize grain, mushroom, cauliflower,diced root vegetables and leafy vegetables.

blancher

Technical Data

  • Model: BP-500,1000,1500,2000,3000
  • Processing capacity: form 500kg-4000 kg/h, max custom model can reach to 6000kg/h (immersing type), 5000kg/h (steam type)
  • Voltage: 380V 50Hz 3Ph, customizable
  • Following data is based on the immersing blancher of 1.5 ton/h capacity for reference, other models please contact us for details
  • Install Power:2.2 kw
  • Weight: 550kg
  • Processing duration:5-10 minutes
  • Blanching temperature:80-90℃
  • Dimensions LxWxH: 5.5m x 1.38m x 2.1m
  • Steam consumption: 1200kg/h
